Application:
Food processing
Fishery production
Meat processing
KA logistics
Features:
Consists of ice storage and stainless steel support bracket, equipped with ice cart;
The ice storage is made up of inner plate and outer sealing plate, stainless steel, meeting hygiene requirement;
Between the inner and outer plates, it is injected with polyurethane foam, with the function of insulation, reinforcement and vibration damping;
Ice storage capacity, 2 types:  436kg and 590kg;
Flange welding for the stainless steel plates, beautiful appearance. Boast the advantage of integrity, tightness and strength.
Insulation manual door on the ice storage side, for viewing and taking out flake ice.
Compact structure, less land required. No need extra bracket for ice machine on the top.

Working conditions:
Power supply: international standard power supply
Standard working conditions: water supply temperature 16℃, ambient temperature 25℃
Applicable conditions: water supply temperature 0~35℃,  ambient temperature 5~40℃
Performance data:
Capacity: 436kg
Outside dimension: L1430*W975*H900 mm
Net weight: 110kg
Suggested ice machine model: F12A
Ice cart: 1 pc
Support bracket: yes

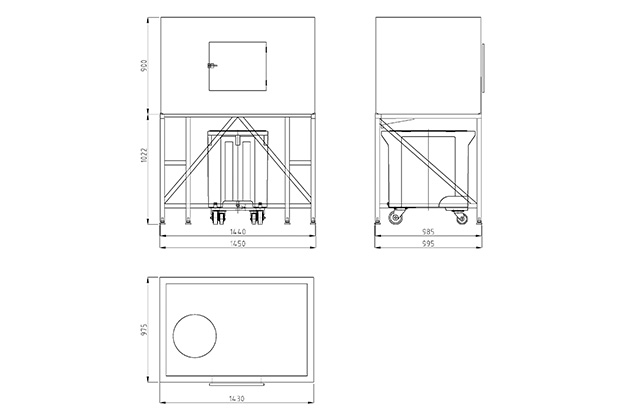

Outside view：

(The above technical data is subject to change without notice. Please contact the sales department for update.)
